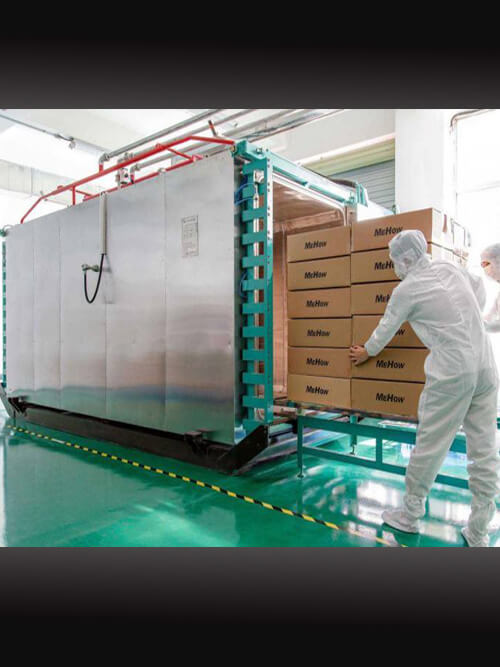

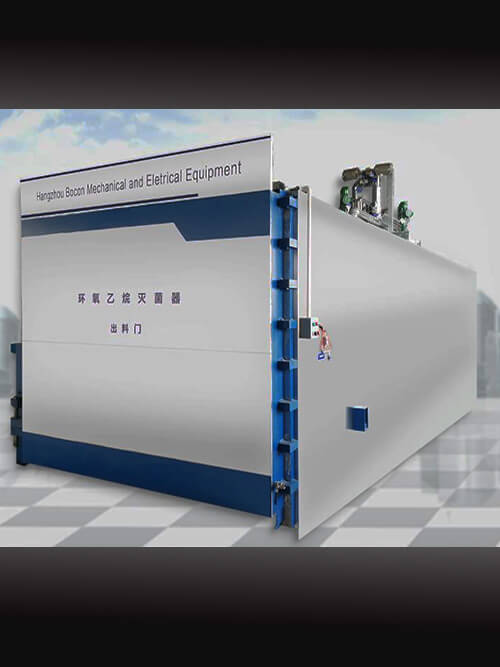

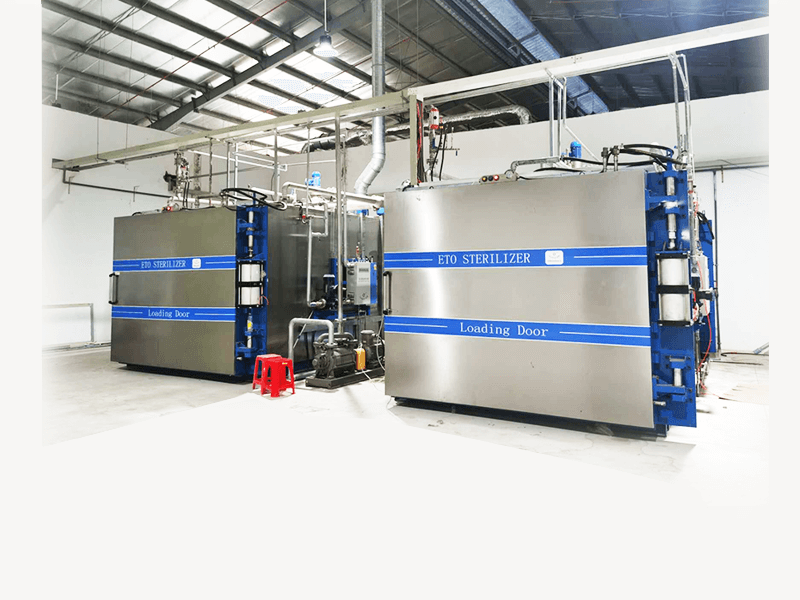

High-quality ethylene oxide sterilization equipment with advanced technology, reliable performance and competitive pricing.
Capacity: 1 m³ ~ 130 m³, For 1~ 32 palltes
Temperature: 30℃~55℃, limit < 58 ℃
EO gas: 100%, 70%, 30%, 20%, 10%, or other.
Process: Each Sterilization Cycle Takes 7-10 Hours
Warranty: Cabinet Guaranteed For 5 Years. 30 Years Service Life.
Advanced sterilization solutions designed to meet the highest industry standards
2026 upgraded version of sterilizer.
| Capacity | 1m³ - 120m³, for 1 - 32 pallets |
| Temperature Range | 37°C - 60°C |
| Pressure Range | 0-0.15 MPa |
| Cycle Time | 7-10 hours (depending on load) |
| Power Supply | 380V 50Hz/60Hz, or transformer |
| Normal pressure range: | -80kPa ~ +80kPa |
| Specific pressure range: | -95kPa ~ +105kPa |
| Optional door types: | Sliding, Revolving, Lifting |
| Control System | Advanced PLC |

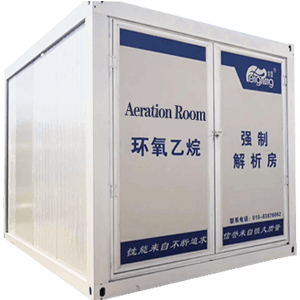

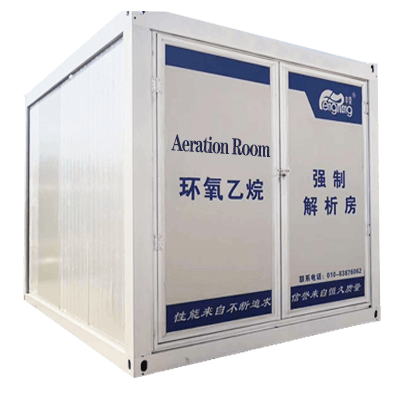

Remove EO gas residues from product and packaging after sterilization.
The aeration process can be carried out in the sterilizer or this separate aeration room.
| Function: | Remove EO gas residues from products |
| Capacity: | for 1 - 32 pallets |
| Temperature Range: | 37°C - 60°C |
| Cycle Time: | 12-24 hours (depending on load) |
| Power Supply: | 380V 50Hz/60Hz (Customizable) |
| Power Consumption: | varies by model |
| Dimensions (W×D×H): | 6000×3300×2500 mm (Customizable) |
| Weight: | 5 - 45Tons (varies by model) |
| Control System: | Advanced PLC |

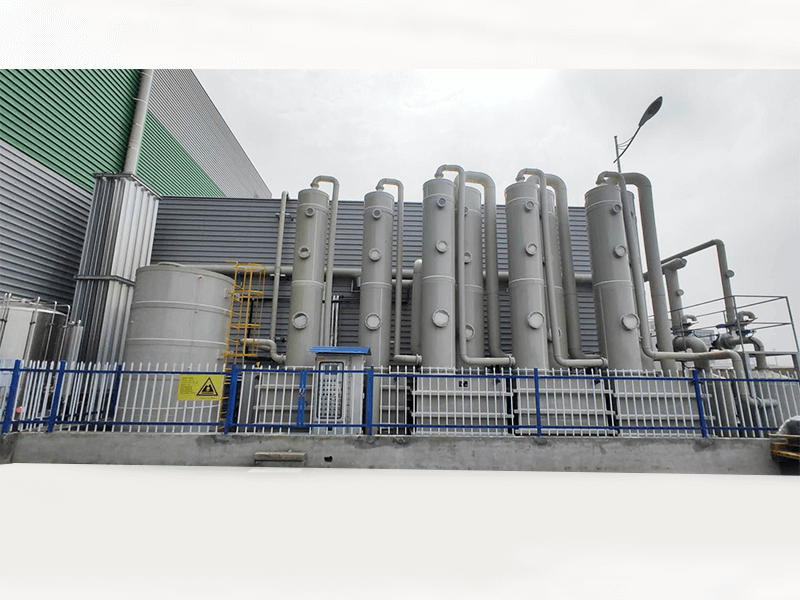

| Emission standard: | 80mg/Nm3(44.4ppm), 40mg/Nm3(22.2ppm), 5mg/Nm3(3ppm) |
| Input: | Electricity & Soft water |
| Output: | @40%glycol |
| Materials available: | PPH, or stainless steel |
| Number of towers: | three-stage, five-stage, six-stage |
| Dimensions(W*D*H): | 12000*3500*6000mm (varies by model) |
| Installation location: | Outdoors or Indoors(pay attention to the height) |
| Routine operations: | Replace the waste liquid every 1-3 months |
| Note: | Sunshade for outdoor, Height for indoor |

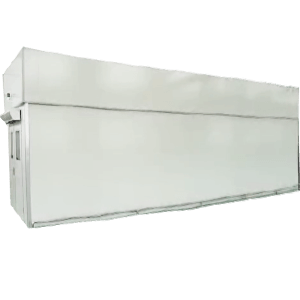

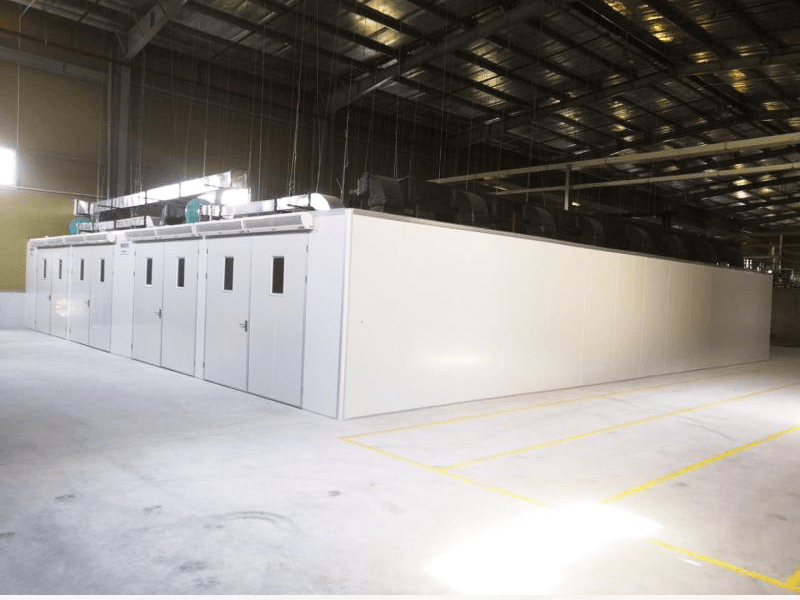

Heat and humidify the product to prepare for sterilization.
This process can be carried out in the sterilizer or separate precondition room.
| Capacity | 1-32 pallets, compatible with sterilizer |
| Temperature Range | 37°C - 60°C |
| Cycle Time | 6-12 hours (depending on load) |
| Power Supply | 380V 50Hz/60Hz (Customizable) |
| Power Consumption | 20-50 kW(varies by model) |
| Dimensions(W×D×H) | 5000×3300×2500 mm (varies by model) |
| Weight | 2500-5000 kg |
| Control System | Industrial PLC + PC Monitoring |
Our EO sterilizers are engineered with cutting-edge technology to ensure optimal performance and safety.
Multiple safety protection systems to prevent accidents and ensure operator safety.
Fast sterilization cycle with uniform EO gas distribution for complete sterilization.
Intelligent touch screen control system with automatic operation and data recording.
EO gas recovery system to minimize environmental impact and reduce operating costs.
Hangzhou Bocon Mechanical And Electrical Co.,Ltd
With over 20 years of experience in sterilization equipment manufacturing, we are a leading supplier of EO sterilizers to medical consumables and pharmaceutical companies worldwide.

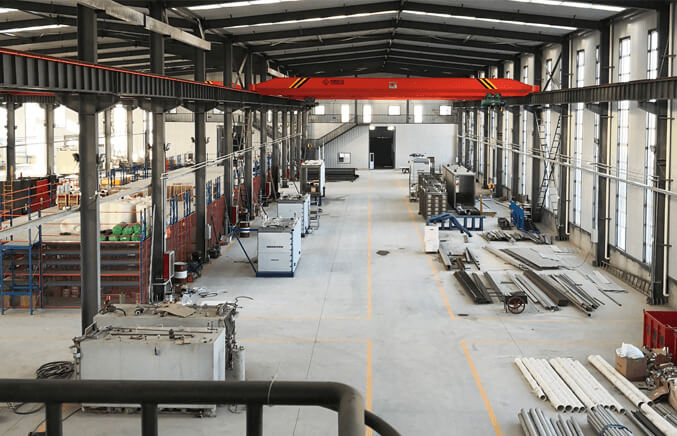

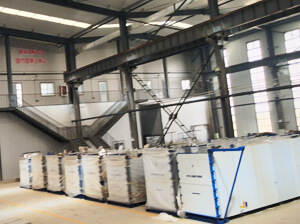

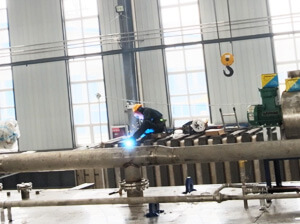

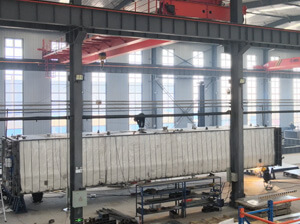

Our factory covers an area of 20,000 square meters with advanced production lines and strict quality control systems. We export our products to more than 50 countries and regions, earning a reputation for reliability and professionalism.
Trusted by professionals and industry leaders worldwide.
"The EO sterilizer has significantly improved our sterilization process efficiency. The equipment is reliable and easy to operate, and the after-sales service is excellent."
Medical Director, Turkiye
"We have been using their sterilizers for 10 years with no major issues. The quality is top-notch and the technical support team is always responsive to our needs."
Director of Engineering, Indonesia
"As a EO sterilization service plant in South Korea, we need reliable sterilization equipment. Their EO sterilizers meet all our quality standards and regulatory requirements."
Quality Manager, South Korea
